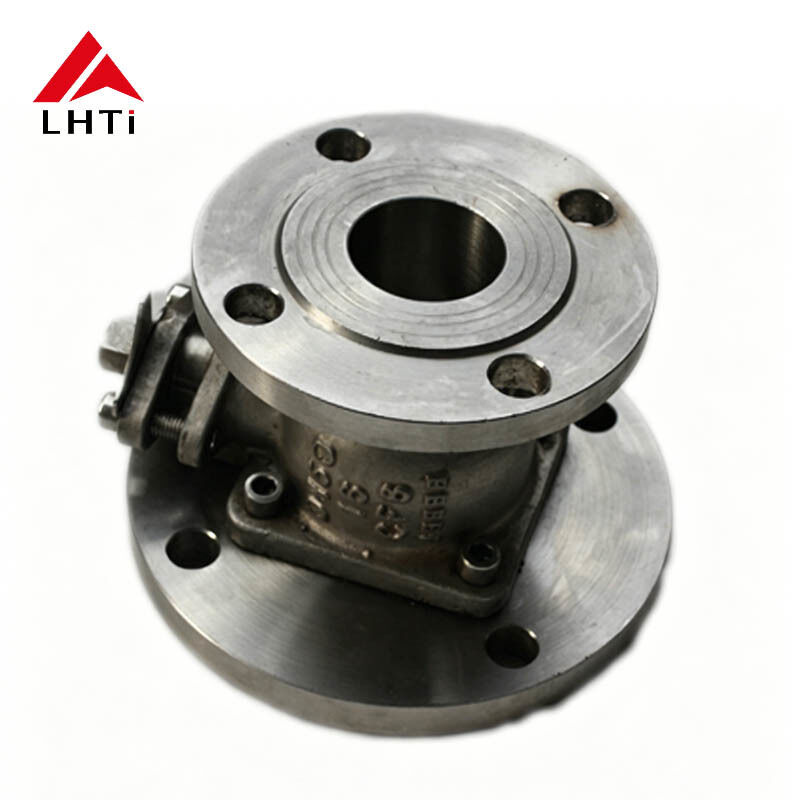

Titanium Lined Floating Ball Valve | Corrosion Resistant Discharge Valve

Titanium Lined Floating Ball Valve | Corrosion Resistant Discharge Valve

Tên thương hiệu: LHTi
Số mẫu: Van bi nổi lót titan
MOQ: 1 mảnh
giá bán: có thể đàm phán
Điều khoản thanh toán: L/C,D/A,D/P,T/T,Western Union
Khả năng cung cấp: 5000 chiếc mỗi tháng
Thông tin chi tiết
Nguồn gốc:
Baoji, Trung Quốc
Chứng nhận:
ISO9001
chi tiết đóng gói:
Vỏ gỗ dán hoặc pallet, hoặc theo yêu cầu của bạn
Khả năng cung cấp:
5000 chiếc mỗi tháng
Mô tả Sản phẩm

Product Overview

Titanium alloy exhibits exceptional stability in neutral, oxidizing, and weakly reducing media, demonstrating excellent corrosion resistance to atmospheric environments, seawater, and chlorine-containing substances. However, in reducing media like hydrochloric acid, its corrosion resistance is relatively poor. To address this, titanium alloys can be enhanced through surface treatments such as ion nitriding and anodization. These processes significantly improve the corrosion resistance of titanium alloys in reducing media and increase their surface hardness to meet more demanding application requirements.

Specifications

  • Pressure Rating: PN1.0-4.0MPa, CLASS150-300Lb
  • Nominal Diameter: DN15-DN200 (1/2"-8")
  • Actuation: Manual, Electric, Pneumatic
  • Applicable Media: Oxidizing corrosive media

Design & Manufacturing Standards

  • Design: HGS-891, HG5-89-2, YTG45
  • Connection Flanges: HG, GB, JB, API, ANSI, ISO, BS, DIN, NF, JIS
  • Testing: JB/T9092, GB/T13927, AP1598

Main Materials

  • Body & Bonnet: TA1, TA2, TA10, Gr2, Gr3
  • Ball & Stem: TA1, TA2, TA10, Gr2, Gr3
