Thông tin chi tiết sản phẩm
Nguồn gốc: Baoji, Trung Quốc
Hàng hiệu: LIHUA
Chứng nhận: ISO9001, TUV etc.
Số mô hình: LH-TH
Điều khoản thanh toán & vận chuyển
Số lượng đặt hàng tối thiểu: 1 miếng
Giá bán: US dollar $15/kg--US dollar $35/kg
chi tiết đóng gói: Hộp gỗ dán xuất khẩu
Thời gian giao hàng: 5-25 ngày làm việc
Điều khoản thanh toán: L/C, T/T, Western Union
Khả năng cung cấp: 5000 kg mỗi tháng
Product name: |
titanium forged ring |
Material: |
Gr5 |
Application: |
Chemical industry |
Outer diameter: |
200-1300mm |
Inner diameter: |
100-900mm |
Height: |
35-250mm |
Thickness: |
40-400mm |
Quality control: |
Ultrasonic Testing |
Product name: |
titanium forged ring |
Material: |
Gr5 |
Application: |
Chemical industry |
Outer diameter: |
200-1300mm |
Inner diameter: |
100-900mm |
Height: |
35-250mm |
Thickness: |
40-400mm |
Quality control: |
Ultrasonic Testing |

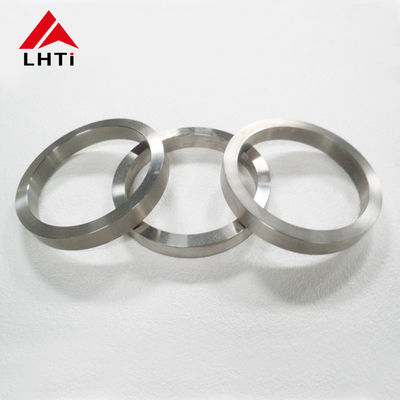

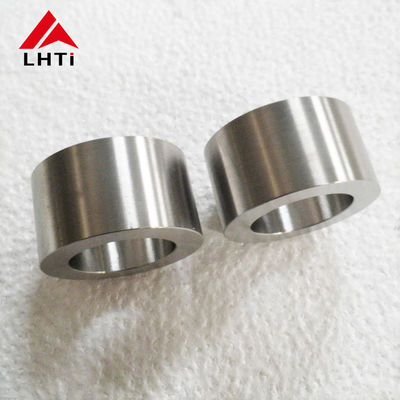

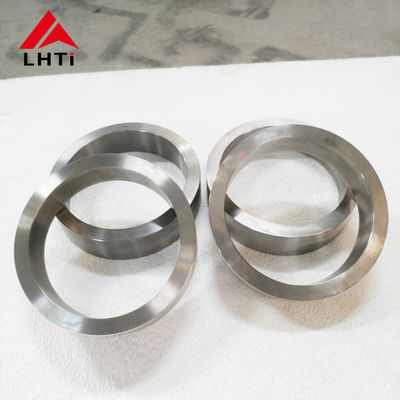

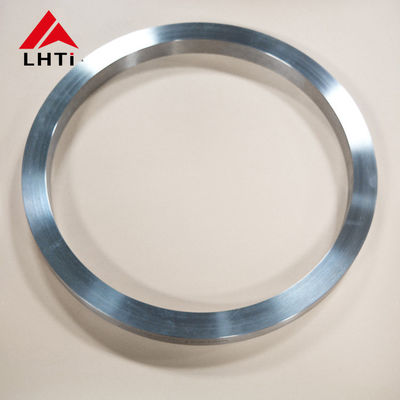

Gr 11 Titanium Forged Ring Titanium Forgings
High melting point (1660℃), Strong corrosion resistance,
High specific strength,
Good plasticity.
Forging and car light,
100% ultrasonic flaw detection
Gr 11 Titanium Forged RingWe produce quality hot forged rings in titanium alloy grade 1,2,3,5,7,11 & 12. We produce different types of hot forged rings in almost all sizes.We also provide passivation,quality coating further processing as per client's requirement.
We can provide titanium alloy seamless forged rings, pipe cutting rings, welded rings, flat cutting rings, rod processing rings.
The Gr 11 titanium forged ring can maintain the required strength at moderate temperatures. It can work for a long time at a temperature of 450~500℃.
Gr 11 titanium forged ring has plasticity, the elongation of high-purity titanium can reach 50-60%, and the area reduction rate can reach 70-80%.
| Chemical requirements | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
